\(QS10_{8}^{(1)}\)
Description
Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(10\) | \(4420\) | \(311111\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = -y-(v-b) \, x^{2}/3+(2+e) \, a \, x \, y+n \, y^{2}+c \, (x+a \, x^{2}+(2 \, v+b)/3 \, x \, y-a \, y^{2}) \\ \dot{y} = x+a \, x^{2}+(2 \, v+b)/3 \, x \, y-a \, y^{2} \end{cases}\]
with parameters: \(a = 1, \quad b = \frac{77}{8}, \quad v = 9, \quad n = 1, \quad c = 0.00182, \quad e = 0.01\)

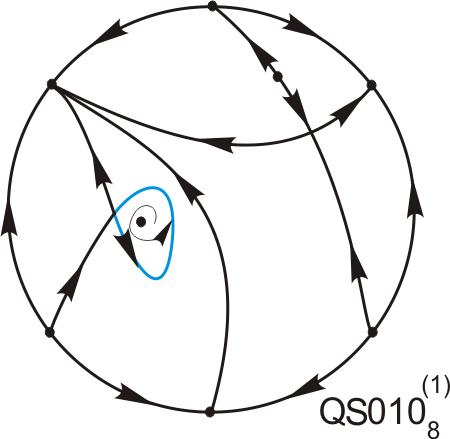

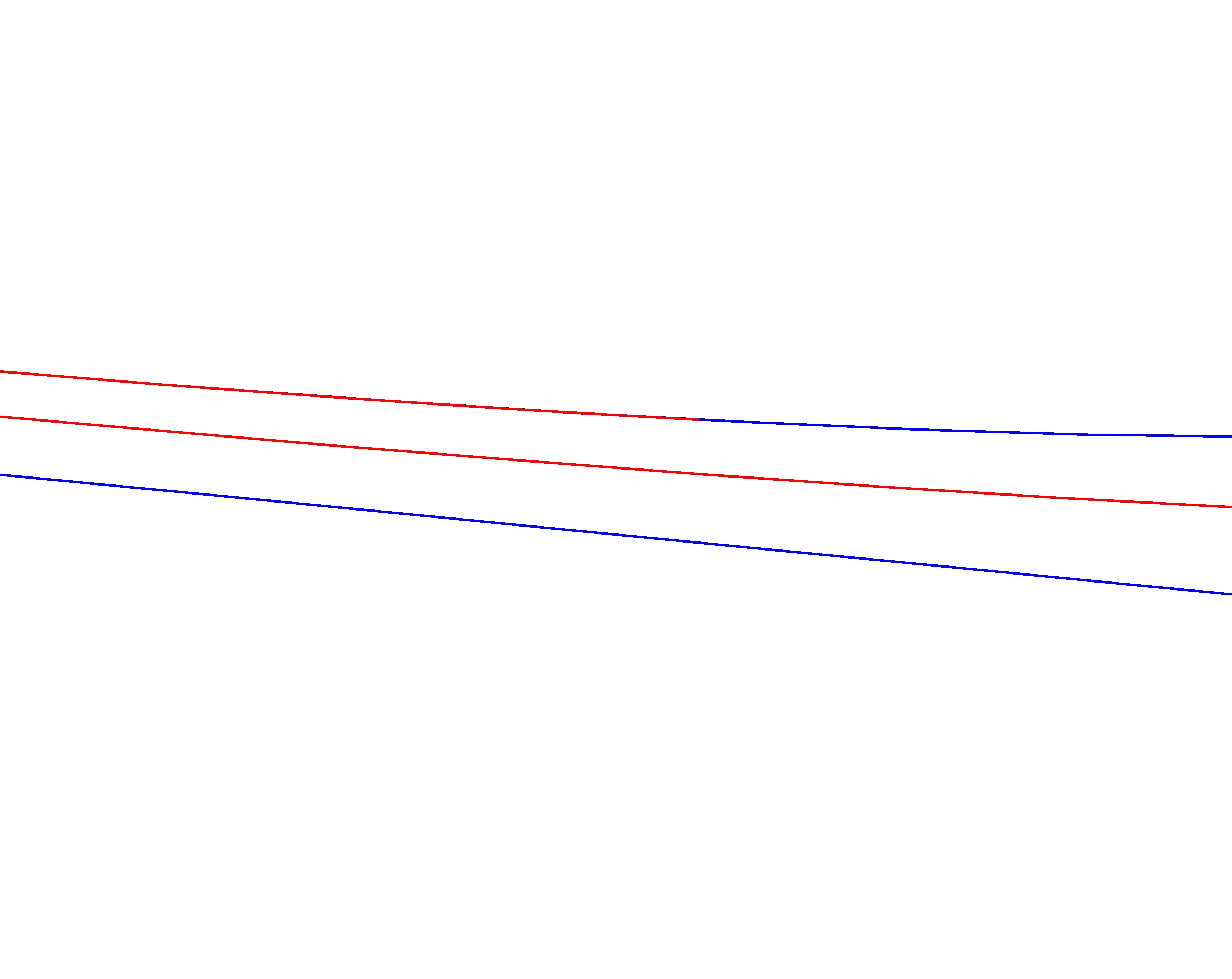

has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With name \(U^1_{D47}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS10_{2}^{(0)}\) and \(QS10_{9}^{(0)}\).
